Empowering the next generation of smart factories with seamless connectivity, rugged durability, and real-time intelligence. Choose the configuration that fits your operational scale.

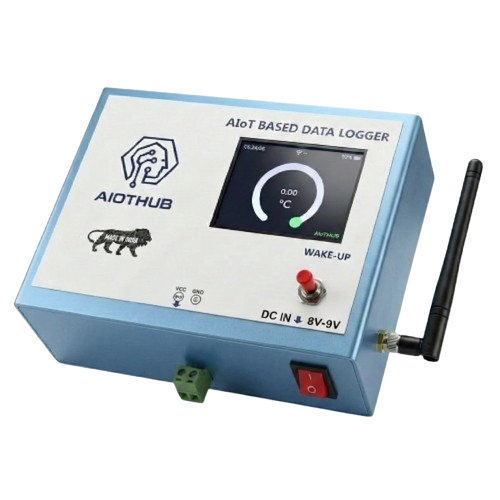

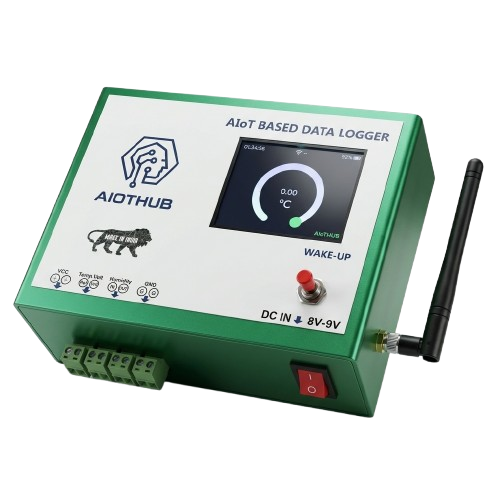

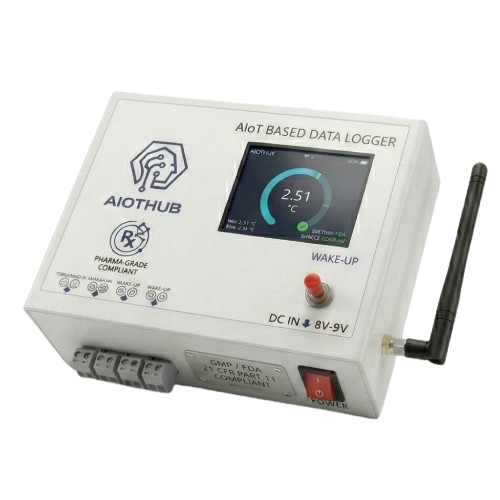

The AIoTHUB Data Logger is engineered to provide unmatched visibility into your shop floor operations. With support for multiple protocols (Modbus, MQTT, OPC-UA), it acts as a universal gateway for your legacy and modern machines.
Supports Wi-Fi, 4G/LTE, and Ethernet for redundant connectivity.
Built-in SD card slot ensures no data loss during network outages.

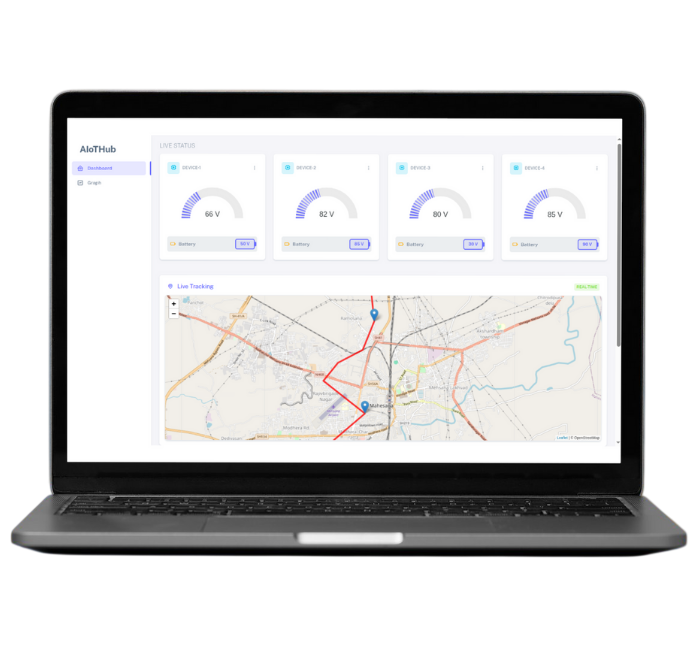

Web-based configuration dashboard required zero coding knowledge.
| Input Voltage | 12V - 24V DC |
|---|---|
| Operating Temp | -10°C to 65°C |
| Connectivity | Wi-Fi (2.4GHz), Ethernet, 4G LTE (Optional) |
| Digital Inputs | 8 Isolated Channels |
| Dimensions | 120mm x 80mm x 30mm |
| Processor & Memory | |
|---|---|
| CPU | Dual-Core ARM Cortex-A7 @ 1.2GHz |
| RAM | 512MB DDR3 |
| Storage | 4GB eMMC (Expandable via SD up to 128GB) |
| Communication Interfaces | |
| Ethernet | 1x 10/100 Mbps RJ45 Port |
| Serial Ports | 2x RS485 (Modbus RTU), 1x RS232 |
| USB | 1x USB 2.0 Host |
| Power & Environment | |
| Power Supply | 9-36V DC Wide Input |
| Power Consumption | < 5W |
| Mounting | DIN Rail Mountable |
Yes, the device comes with an optional 4G LTE module. You can insert a standard Mini-SIM card to enable cellular connectivity.
Absolutely. The device supports Modbus TCP/IP and MQTT, making it compatible with most modern SCADA and cloud platforms.
Yes, it has internal storage and supports SD cards specifically for data buffering. Once connectivity is restored, it uploads the stored data automatically.
We offer a standard 1-year warranty on hardware, which can be extended up to 3 years with our premium support package.
Excellent device. We implemented this in our pharmaceutical plant and it has been running flawlessly for 3 months.
